PL-200

2.5 m petal-type tripod light tower. It deploys in two steps, in under 10 seconds, and one person can carry it.

Request a quote Buy online

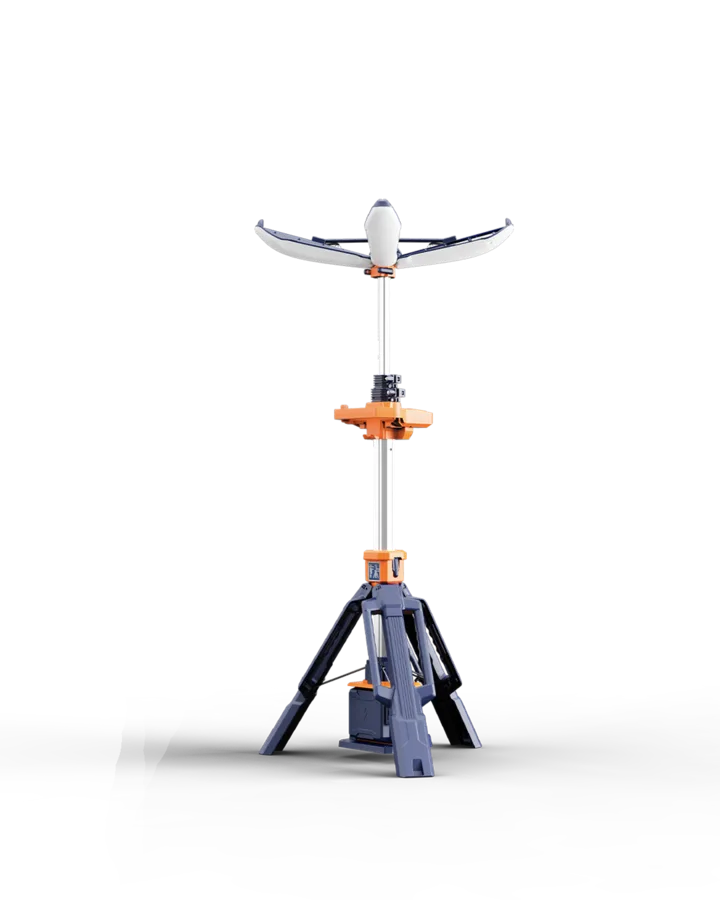

PL-200 tower deployed with its petal light head open

12,000Max. lumens on AC

2.5 mMaximum height

6.5 kgWeight without battery

IP66Protection rating

Description

The PL-200 in detail

The PL-200 Tower redefines industrial soft lighting by combining light output with omnidirectional coverage and maximum portability in a chassis that weighs just 6.5 kg.

Designed to replace fragile, awkward traditional balloon lights that require bulky external generators and loose cables, this All-In-One solution integrates a telescopic mast adjustable from 1.30 to 2.50 meters with a quick-release buckle lock, and a single operator can set it up in under 10 seconds.

Its innovative biomimetic design of articulated petals distributes even light with no blind spots to cover areas of up to 1,100 m². With hybrid power from AC or its D24 series lithium batteries, it delivers up to 12,000 lumens with stepless dimming or up to 45 hours of runtime in the field.

Built with IP66 certification to withstand torrential rain and dust, the PL-200 maximizes return on investment in construction, maintenance, mining and rescue projects by completely eliminating on-site fuel and maintenance costs.

Features

What sets the PL-200 apart

Two steps, under 10 seconds

Deploying or folding the unit takes two moves. One button releases the tripod and the buckle locks the light at any height.

Adjustable 360° lighting

Petal light head with angle adjustable in 4 levels: switch coverage from a full sphere to a hemisphere to suit the jobsite.

D24-100 battery

45 typical hours in Eco mode and over 8 hours in Standard mode with the D24-100 battery.

Two USB outputs

5 V 2 A on two ports to charge two devices at once. The hook holds your phone while it charges.

IP66 and optional ground stakes

Sealed against dust and water jets. Optional ground stakes secure it against wind and vibration.

Stepless dimming on AC

Plugged into grid power with the controller, brightness goes up to 12,000 lm with stepless dimming, no steps.

On the job

The PL-200 at work

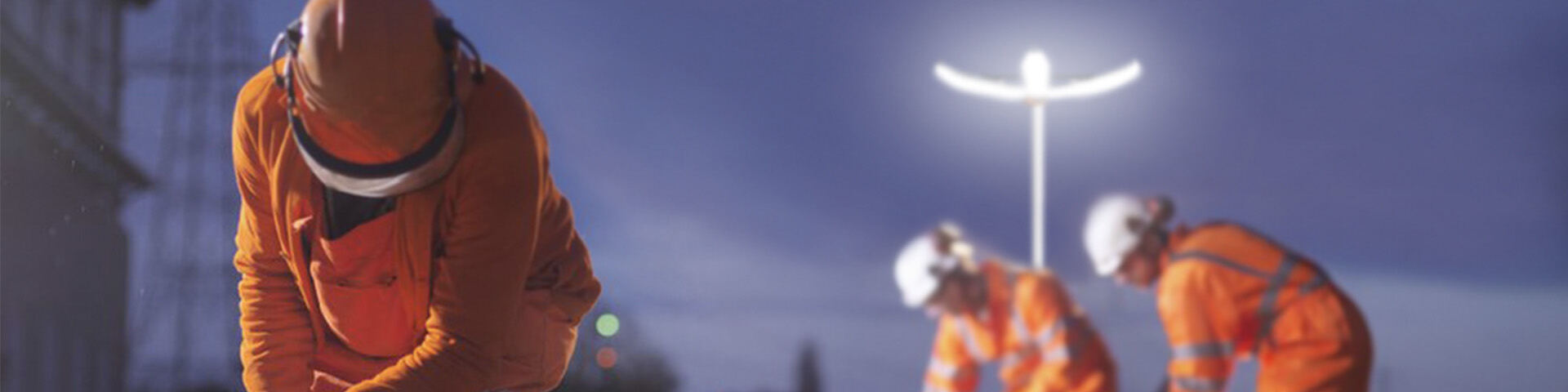

Crew working at night next to a PL-200 tower with its petal light head open — Maintenance crew

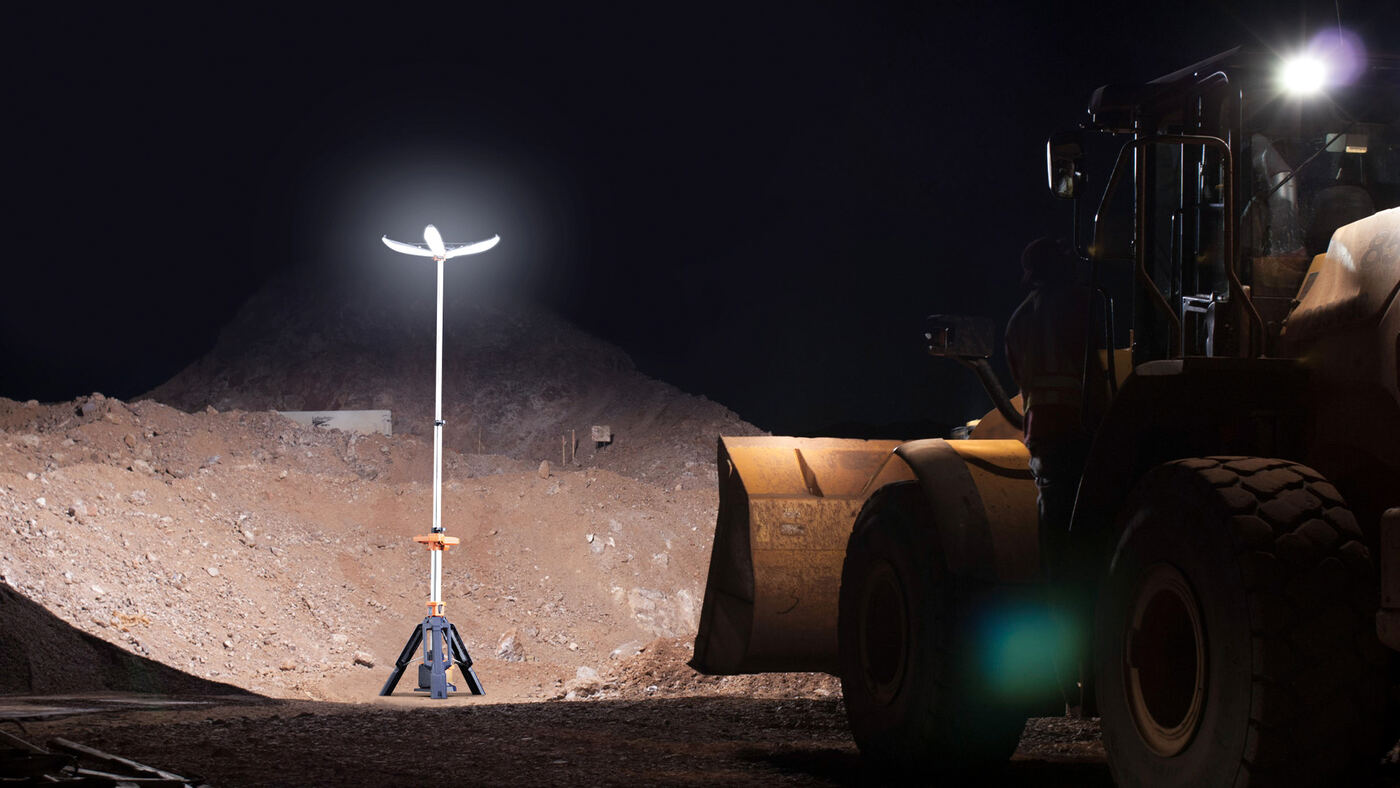

PL-200 tower lighting a nighttime jobsite next to a front loader — Jobsite with heavy equipment

Two PL-200 towers lighting road paving work at dusk — Road work

Light modes

Four modes on battery, stepless on grid power

On battery it works in four steps. Plugged into grid power, dimming is stepless from 0 to 12,000 lm.

Mode (battery)	Luminous flux
Turbo	6,000 lm
Standard	3,500 lm
Balanced	2,200 lm
Eco	600 lm
AC power	0 – 12,000 lm, stepless

Battery	Working hours
D24-100	45 h typical in Eco mode
D24-100	Over 8 h in Standard mode

Specifications

Technical data

Spec	Value
Height	1.3 m – 2.5 m
Weight	6.5 kg (without battery)
Power	D24 series battery / AC 100–277 V
Luminous flux	0 – 12,000 lm
Runtime	> 8 h (Standard mode, D24-100)
Lighting area	1,100 m²
Protection rating	IP66
USB output	5 V 2 A (2 ports)
Petal angle	Adjustable in 4 levels
